 Adding Heater

Go down
5 posters
AuthorMessage
Triple J

Triple J


Number of posts : 240
Registration date : 2009-01-15
Location : Minnesota

Adding Heater Empty
PostSubject: Adding Heater   Adding Heater EmptyTue Jan 27, 2009 1:15 pm

Have any of you added a heater to your Prowler?

I'm getting ready to install a unit I got off of Ebay and any info you can provide would be geat.

It looks like it would be very easy to install with the underhood storage box temporarily removed, but not sure what is involved with removing the storage box.
Back to top Go down
Triple J

Triple J


Number of posts : 240
Registration date : 2009-01-15
Location : Minnesota

Adding Heater Empty
PostSubject: Re: Adding Heater   Adding Heater EmptyFri Jan 30, 2009 4:56 pm

Well started working on installing the heater today. Damn near 2 hours to get the storage box out of the way.

They don't give a guy a lot of space to splice in the Y's to go to the control valve. Feet got cold so will look at it harder tomorrow.
Back to top Go down
GunRunner
SSXSRider Member
GunRunner


Number of posts : 5296
Registration date : 2008-01-22
Age : 69
Location : North Georgia,

Adding Heater Empty
PostSubject: Re: Adding Heater   Adding Heater EmptyFri Jan 30, 2009 5:19 pm

I never added one to my prowler but thought about putting a 12v computer fan on the motor cover to pull heat into the cab, show us some pics when you get done. Eat
Back to top Go down
http://southernrzrriders.com
Triple J

Triple J


Number of posts : 240
Registration date : 2009-01-15
Location : Minnesota

Adding Heater Empty
PostSubject: Re: Adding Heater   Adding Heater EmptyFri Jan 30, 2009 6:18 pm

Will do.

I've thought about the computer fans as well. Was going to make them so they could be turned around in a frame so you could pull hot air in during winter and shove some cool air across motor in summer.

I haven't decided if I'm going to run the defroster or not yet, I can always add it later.
Back to top Go down
wvyankee2
SSXSRider Member
wvyankee2


Number of posts : 10318
Registration date : 2008-01-22
Age : 63
Location : Cabell Co., West Virginia

Adding Heater Empty
PostSubject: Re: Adding Heater   Adding Heater EmptyFri Jan 30, 2009 8:01 pm

Look forward to see the final product. I know Airborne LT put one in his Rhino and loves it.
Back to top Go down
shawnley1222
SSXSRider Member
shawnley1222


Number of posts : 2745
Registration date : 2008-01-22
Age : 37
Location : Brandon, FL

Adding Heater Empty
PostSubject: Re: Adding Heater   Adding Heater EmptySat Jan 31, 2009 12:16 am

Lookin forward to see the final pics
Back to top Go down
Triple J

Triple J


Number of posts : 240
Registration date : 2009-01-15
Location : Minnesota

Adding Heater Empty
PostSubject: Re: Adding Heater   Adding Heater EmptySun Feb 01, 2009 7:55 am

Well I got a start on it yesterday. Hopefully be able to get everything installed today.

I haven't been able to find much info on installing one in a Prowler and the ones I have found don't have pics and minimal info and differ completely in how they installed the heater.

I guess if it's wrong I'll call it a learning experience and do it again. lol!
Back to top Go down
AIRBORNE
SSXSRider Member
AIRBORNE


Number of posts : 6266
Registration date : 2008-05-01
Age : 49
Location : Morgantown, West Virginia

Adding Heater Empty
PostSubject: Re: Adding Heater   Adding Heater EmptySun Feb 01, 2009 8:56 am

The heater will be a nice touch once you get finished. You guys get a lot more cold weather. Can't wait to see some pics of the green monster once you're done.
Back to top Go down
https://s300.photobucket.com/albums/nn28/AirborneWV/
Triple J

Triple J


Number of posts : 240
Registration date : 2009-01-15
Location : Minnesota

Adding Heater Empty
PostSubject: Re: Adding Heater   Adding Heater EmptySun Feb 01, 2009 5:06 pm

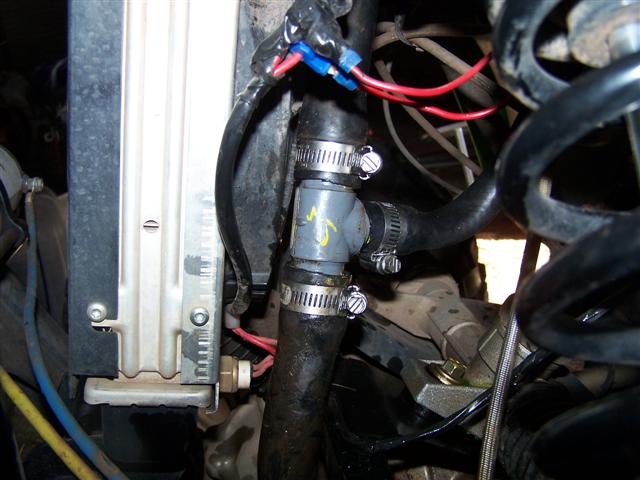

Well I put a T into the upper radiator hose next to the radiator.

[img]Adding Heater 100_0911[/img]

Put another T into the short chunk of rubber line next to carb (most of the system is steel line)

[img]Adding Heater 100_0912[/img]

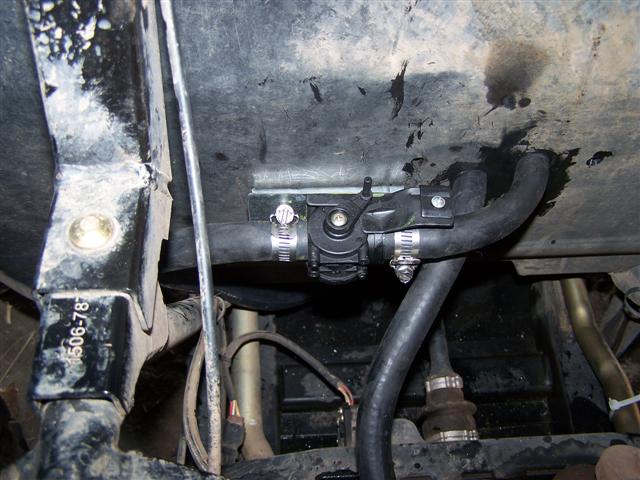

The heater control valve is on the firewall under the hood.

[img]Adding Heater 100_0913[/img]

Here is the heating unit waiting to be hooked up

[img]Adding Heater 100_0915[/img]

I think I will have to install a shut off valve in the main line though as at idle there isn't enough flow to the heater. If you rev it up it heats really well.

Still need to wire the switch and button everything up
Back to top Go down
shawnley1222
SSXSRider Member
shawnley1222


Number of posts : 2745
Registration date : 2008-01-22
Age : 37
Location : Brandon, FL

Adding Heater Empty
PostSubject: Re: Adding Heater   Adding Heater EmptySun Feb 01, 2009 10:21 pm

cool
Back to top Go down
Triple J

Triple J


Number of posts : 240
Registration date : 2009-01-15
Location : Minnesota

Adding Heater Empty
PostSubject: Re: Adding Heater   Adding Heater EmptyTue Feb 03, 2009 2:26 pm

Just got some pointers on running the system a little different so I won't have to put a shut off valve in.

Should get a chance later in the week to work on it hopefully.
