PostSubject: Re: Rhino Wheel Bearings   Mon Nov 16, 2009 12:45 am

4x4pac wrote:
Big R. no reason for a press. Knock each one out from the opposite side it is on, or from that bearings back side. Once you get both out, use one of the old bearing races or the right size socket to knock the new ones in. Not that hard once you have done a set. I got lots of practice doing mine. lol!

Man I can't get them out. I have tried. I just can't get enough bite to bang that f$%#er out Mad Will a slide hammer bearing remover work????

_________________
I Just Want To Go Fast

14 RZR XP 900 4
2012 Teryx 4
11 RZR XP 900 sold
08 RZR S 820 sold
08 Rhino 700EFI sold
2013 Teryx 4 LE sold

Lucky Rabbit Foot Key Chain Club
Red Rhino keychain club

SouthernSxSRider Member # 1
Back to top Go down
ridepate
SSXSRider Staff
avatar

Number of posts : 6407
Registration date : 2009-04-23
Age : 57
Location : 1st join date- 1/22/2008- North Ga.

PostSubject: Re: Rhino Wheel Bearings   Mon Nov 16, 2009 1:45 am

Dude.....a punch and a hammer.. TKOB ,take care of business...............

_________________
Went back in time....07 Rhino 660....
2016 Polaris General???? Or 2016 Pioneer 1000-3EPS??
2014 Kawasaki Teryx T2 SOLD
2013 Ranger XP-900 aka "Big-Green Tractor" SOLD
2010 Ranger XP-800 aka "Whitey" SOLD
2009 RZR-S SOLD
2007 Rhino 686 SOLD
2007 Rhino 450 SOLD
Blue-Cooler/White-Top member
SSXSR Member # 6
PIG FEEDER NATION
Back to top Go down
RedNeckRanger
SSXSRider Member
avatar

Number of posts : 946
Registration date : 2009-06-03
Location : CHATTANOOGA

PostSubject: Re: Rhino Wheel Bearings   Mon Nov 16, 2009 6:10 am

take a old med flat blade screw driver and grind the end down like a dull knife blade.its a lot easier than a punch.once u get it moving its done.
Back to top Go down
Mud-and-Guts
SSXSRider Member
avatar

Number of posts : 1839
Registration date : 2008-09-22
Age : 38
Location : celina,tn

PostSubject: Re: Rhino Wheel Bearings   Mon Nov 16, 2009 8:19 am

A good punch will work (slowly)but a cheap punch will chip.
Back to top Go down
http://www.mudandgutsoffroad.org/
Big-R
SSXSRider Staff
avatar

Number of posts : 16074
Registration date : 2008-02-26
Age : 44
Location : Louisville,Ky

PostSubject: Re: Rhino Wheel Bearings   Wed Nov 18, 2009 12:08 am

Well, I have finally banged out my bearings. In doing so I have figured out a few things. One do not let your dealer ever install your bearings. They will NOT do a good job. Two, buy yourself a blind bearing puller set. You will not use the slide hammer but the puller sure comes in handy. Three, pack those bearings full of grease. They do not come with much in them at all.....

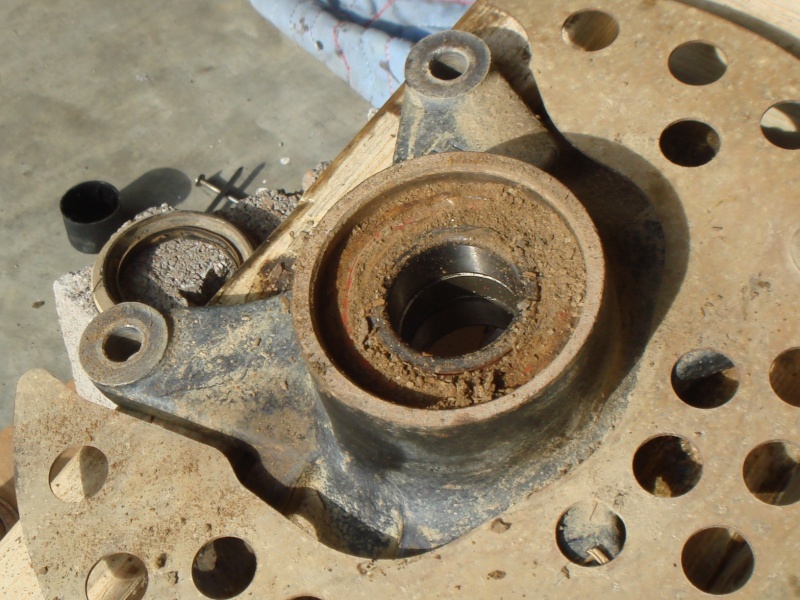

Water, sand and mud is the down fall of your bearings. Check this out.

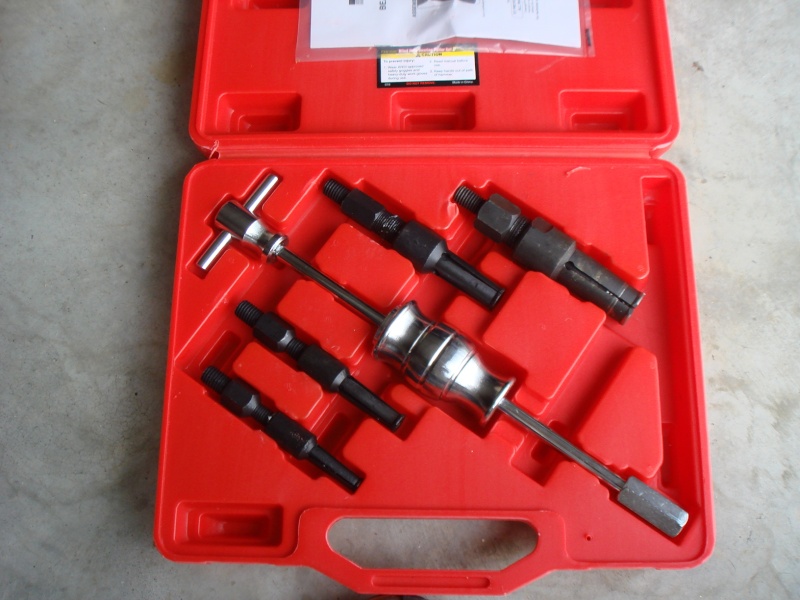

Now you need to buy one of these. $42.00 at harbor freight..


Leave every thing in the box except in big puller. Get it out, set it in the bearing flip the spindle over and start banging. about five wackes and they're out.




Pull the seal in your bearings and look what you will find........ nothing!!!!!


Get some of this and pack and cover every thing inside that spindle ..... And it might hold up for a while.....


2cents

_________________
I Just Want To Go Fast

14 RZR XP 900 4
2012 Teryx 4
11 RZR XP 900 sold
08 RZR S 820 sold
08 Rhino 700EFI sold
2013 Teryx 4 LE sold

Lucky Rabbit Foot Key Chain Club
Red Rhino keychain club

SouthernSxSRider Member # 1
Back to top Go down
nocerisdave
SSXSRider Member
avatar

Number of posts : 5674
Registration date : 2008-01-22
Age : 52
Location : Laceys Spring AL

PostSubject: Re: Rhino Wheel Bearings   Wed Nov 18, 2009 8:28 pm

I have wondered why wheel bearings should be packed to 1/3 of capacity. Here are some answers around the Inet.

I sell bearings for a living....the LU is NTN's suffix for rubber sealed bearings and the RS stands for rubber seal as well. When a bearing is manufactured it is filled with a pre-determined amount of gease that is good for the LIFE of the bearing. For all you who seem to think overpacking these brgs with grease is going to work for you...all I say is good luck. All you doing is creating alot of excessive heat and drag as the rolling elements (brg balls) are skiding in the raceways not turning thus causing more premature failure. If your that hard up my next advice is to buy new ones even offshore make from a BEARING DISTRIBUTOR for a couple bucks is better than what you are doing by damaging the seal, overpacking etc and save your time and effort!
________________________________________________________________________________________________________

Roller bearings should be "packed" with grease to 1/3 the surface area. More than that amount will cause skidding of the balls to the race. The good news is that on the 6205, the seal allows an over packed bearing to release the excess grease and, because of the excessive lube, keep the water out causing it to live longer.
__________________________________________________________

With these explanations my understanding is over packing causes the excess grease to "trap heat", and the actual balls in the bearings to "skid" or not turn, all the time, as intended. I would say that causes wear on the race and tiny flat spots on the balls. I have always thought more is better when packing or re-packing bearings.....guess I was wrong.
___________________________________________________________

That said, there are comments that say over packing is better, but the 1/3 capacity comments far out number the over packing comments.
Back to top Go down
Big-R
SSXSRider Staff
avatar

Number of posts : 16074
Registration date : 2008-02-26
Age : 44
Location : Louisville,Ky

PostSubject: Re: Rhino Wheel Bearings   Thu Nov 19, 2009 12:38 am

Well damn, I bet you I am over packed. I filled the bearing and spindle with as much grease as a could. I mainly did this to keep water out. There was a lot of room in the bearings for water to stay causing rust. I think I would want heat over rust.

_________________
I Just Want To Go Fast

14 RZR XP 900 4
2012 Teryx 4
11 RZR XP 900 sold
08 RZR S 820 sold
08 Rhino 700EFI sold
2013 Teryx 4 LE sold

Lucky Rabbit Foot Key Chain Club
Red Rhino keychain club

SouthernSxSRider Member # 1
Back to top Go down
Mud-and-Guts
SSXSRider Member
avatar

Number of posts : 1839
Registration date : 2008-09-22
Age : 38
Location : celina,tn

PostSubject: Re: Rhino Wheel Bearings   Thu Nov 19, 2009 8:04 am

If you ride cold weather over packing is also bad because it will freeze to an extent and not let the bearings work freely.
I was told by the company that installed my over head doors not to put grease on the rollers because of this, they said the grease would freeze not allowing the rollers function properly and cause premature failure.
Back to top Go down
http://www.mudandgutsoffroad.org/
Big-R
SSXSRider Staff
avatar

Number of posts : 16074
Registration date : 2008-02-26
Age : 44
Location : Louisville,Ky

PostSubject: Re: Rhino Wheel Bearings   Thu Nov 19, 2009 2:23 pm

It would have to be very cold to freeze grease.

Well, I have tried it their way and it did not last very long. So now I will try it my way. I don't think those bearings are turning real fast the way I ride.

_________________
I Just Want To Go Fast

14 RZR XP 900 4
2012 Teryx 4
11 RZR XP 900 sold
08 RZR S 820 sold
08 Rhino 700EFI sold
2013 Teryx 4 LE sold

Lucky Rabbit Foot Key Chain Club
Red Rhino keychain club

SouthernSxSRider Member # 1
Back to top Go down
nocerisdave
SSXSRider Member
avatar

Number of posts : 5674
Registration date : 2008-01-22
Age : 52
Location : Laceys Spring AL

PostSubject: Re: Rhino Wheel Bearings   Thu Nov 19, 2009 2:59 pm

I just changed a set in my drivers side rear. I did put extra grease in them. I have a set for the other side. I will go ahead and change them to the new ones with the factory grease only. I will keep you all updated on what seems to be working better and get some pics.
Back to top Go down
Big-R
SSXSRider Staff
avatar

Number of posts : 16074
Registration date : 2008-02-26
Age : 44
Location : Louisville,Ky

PostSubject: Re: Rhino Wheel Bearings   Thu Nov 19, 2009 10:49 pm

I am putting mine together and I think I will be need some ball joints soon Mad

_________________
I Just Want To Go Fast

14 RZR XP 900 4
2012 Teryx 4
11 RZR XP 900 sold
08 RZR S 820 sold
08 Rhino 700EFI sold
2013 Teryx 4 LE sold

Lucky Rabbit Foot Key Chain Club
Red Rhino keychain club

SouthernSxSRider Member # 1


Last edited by Big-R on Mon May 10, 2010 10:59 pm; edited 1 time in total
Back to top Go down
Mud-and-Guts
SSXSRider Member
avatar

Number of posts : 1839
Registration date : 2008-09-22
Age : 38
Location : celina,tn

PostSubject: Re: Rhino Wheel Bearings   Thu Nov 19, 2009 10:57 pm

Big-R wrote:
It would have to be very cold to freeze grease.

Well, I have tried it their way and it did not last very long. So now I will try it my way. I don't think those bearings are turning real fast the way I ride.

I don't know if the grease actually freezes but it gets very solid causing the bearing not to roll properly and wear out faster. At-least that is what they told me on the door rollers, they said to use regular motor oil a couple times a year.
Back to top Go down
http://www.mudandgutsoffroad.org/
dmac

avatar

Number of posts : 10
Registration date : 2008-01-22
Age : 51
Location : Many, La

PostSubject: Re: Rhino Wheel Bearings   Fri Jan 01, 2010 6:47 pm

nocerisdave wrote:
I just changed a set in my drivers side rear. I did put extra grease in them. I have a set for the other side. I will go ahead and change them to the new ones with the factory grease only. I will keep you all updated on what seems to be working better and get some pics.

Any updates yet? I'm needing to change the rears again ( last set was AllBalls and lasted about 500 miles)
Back to top Go down
nocerisdave
SSXSRider Member
avatar

Number of posts : 5674
Registration date : 2008-01-22
Age : 52
Location : Laceys Spring AL

PostSubject: Re: Rhino Wheel Bearings   Sat Jan 02, 2010 1:31 am

Nothing yet dmac. Bought a RZR S and haven't been riding the Rhino. So it may take a while to get good results.
Back to top Go down
AIRBORNE
SSXSRider Member
avatar

Number of posts : 6264
Registration date : 2008-05-01
Age : 44
Location : Morgantown, West Virginia

PostSubject: Re: Rhino Wheel Bearings   Fri Mar 12, 2010 4:26 pm

Put in AllBalls rear bearings yesterday. I put some extra grease in there, but did not cram them completely full. I did use some anti-seize on the housing when I put the bearings in. MKing says that helps to get them out the next time. Big-R was right.....blind bearing puller worked like a charm.
Back to top Go down
http://s300.photobucket.com/albums/nn28/AirborneWV/
Big-R
SSXSRider Staff
avatar

Number of posts : 16074
Registration date : 2008-02-26
Age : 44
Location : Louisville,Ky

PostSubject: Re: Rhino Wheel Bearings   Fri Mar 12, 2010 4:55 pm

AIRBORNE wrote:
.....blind bearing puller worked like a charm.

Very cool. It is the easiest way I could find (other then a press) to get them out. I am glad it worked out for you.

_________________
I Just Want To Go Fast

14 RZR XP 900 4
2012 Teryx 4
11 RZR XP 900 sold
08 RZR S 820 sold
08 Rhino 700EFI sold
2013 Teryx 4 LE sold

Lucky Rabbit Foot Key Chain Club
Red Rhino keychain club

SouthernSxSRider Member # 1
Back to top Go down
AIRBORNE
SSXSRider Member
avatar

Number of posts : 6264
Registration date : 2008-05-01
Age : 44
Location : Morgantown, West Virginia

PostSubject: Re: Rhino Wheel Bearings   Fri Mar 12, 2010 4:58 pm

Thanks for the tip. I can't wait to get it back on the trails.
Back to top Go down
http://s300.photobucket.com/albums/nn28/AirborneWV/
wvyankee2
SSXSRider Member
avatar

Number of posts : 10317
Registration date : 2008-01-22
Age : 57
Location : Cabell Co., West Virginia

PostSubject: Re: Rhino Wheel Bearings   Fri Mar 12, 2010 8:02 pm

AIRBORNE wrote:
Put in AllBalls rear bearings yesterday. I put some extra grease in there, but did not cram them completely full. I did use some anti-seize on the housing when I put the bearings in. MKing says that helps to get them out the next time. Big-R was right.....blind bearing puller worked like a charm.



I put alls balls in my rear spindles today. Front tomorrow. I did add some grease to the bearings. One bearing had only enough to barely coat the balls. They also sent me the wrong seals for one rear set. No
Back to top Go down
AIRBORNE
SSXSRider Member
avatar

Number of posts : 6264
Registration date : 2008-05-01
Age : 44
Location : Morgantown, West Virginia

PostSubject: Re: Rhino Wheel Bearings   Fri Mar 12, 2010 8:04 pm

3 of 4 had a good amount of grease. 1 barely had any.
Back to top Go down
http://s300.photobucket.com/albums/nn28/AirborneWV/
Mud-and-Guts
SSXSRider Member
avatar

Number of posts : 1839
Registration date : 2008-09-22
Age : 38
Location : celina,tn

PostSubject: Re: Rhino Wheel Bearings   Sat Mar 27, 2010 2:13 pm

Big-R wrote:
AIRBORNE wrote:
.....blind bearing puller worked like a charm.

Very cool. It is the easiest way I could find (other then a press) to get them out. I am glad it worked out for you.

Ordered mine today. Hopefully it will be a while before I need it..
Back to top Go down
http://www.mudandgutsoffroad.org/
Mud-and-Guts
SSXSRider Member
avatar

Number of posts : 1839
Registration date : 2008-09-22
Age : 38
Location : celina,tn

PostSubject: Re: Rhino Wheel Bearings   Mon May 10, 2010 8:57 pm

Replaced my rear bearing again today... I didn't get but a couple hundred miles out of the AllBalls bearings and they looked worse than the stock bearings did at 1400miles...

FYI I replaced the right side with Moose bearing which looked identical to the AllBalls bearings and had the exact same numbers on the bearing...

I replaced the driver side with bearing from a machine shop to see how they do....
Back to top Go down
http://www.mudandgutsoffroad.org/
Big-R
SSXSRider Staff
avatar

Number of posts : 16074
Registration date : 2008-02-26
Age : 44
Location : Louisville,Ky

PostSubject: Re: Rhino Wheel Bearings   Mon May 10, 2010 11:05 pm

Mud-and-Guts wrote:
Replaced my rear bearing again today... I didn't get but a couple hundred miles out of the AllBalls bearings and they looked worse than the stock bearings did at 1400miles...

FYI I replaced the right side with Moose bearing which looked identical to the AllBalls bearings and had the exact same numbers on the bearing...

I replaced the driver side with bearing from a machine shop to see how they do....

Did you get to use the blind bearing puller?

_________________
I Just Want To Go Fast

14 RZR XP 900 4
2012 Teryx 4
11 RZR XP 900 sold
08 RZR S 820 sold
08 Rhino 700EFI sold
2013 Teryx 4 LE sold

Lucky Rabbit Foot Key Chain Club
Red Rhino keychain club

SouthernSxSRider Member # 1
Back to top Go down
Smith700
SSXSRider Member


Number of posts : 2713
Registration date : 2009-08-21
Location : Knoxville,Tn

PostSubject: Re: Rhino Wheel Bearings   Mon May 10, 2010 11:22 pm

3206 miles......still on stock set! thatsright ownedsm There is no movement AT ALL in any of them. drive
Back to top Go down
ridepate
SSXSRider Staff
avatar

Number of posts : 6407
Registration date : 2009-04-23
Age : 57
Location : 1st join date- 1/22/2008- North Ga.

PostSubject: Re: Rhino Wheel Bearings   Mon May 10, 2010 11:49 pm

smith700 wrote:
3206 miles......still on stock set! thatsright ownedsm There is no movement AT ALL in any of them. drive

I'll bring a jack to Windrock.................. Smiles

_________________
Went back in time....07 Rhino 660....
2016 Polaris General???? Or 2016 Pioneer 1000-3EPS??
2014 Kawasaki Teryx T2 SOLD
2013 Ranger XP-900 aka "Big-Green Tractor" SOLD
2010 Ranger XP-800 aka "Whitey" SOLD
2009 RZR-S SOLD
2007 Rhino 686 SOLD
2007 Rhino 450 SOLD
Blue-Cooler/White-Top member
SSXSR Member # 6
PIG FEEDER NATION
Back to top Go down
Big-R
SSXSRider Staff
avatar

Number of posts : 16074
Registration date : 2008-02-26
Age : 44
Location : Louisville,Ky

PostSubject: Re: Rhino Wheel Bearings   Mon May 10, 2010 11:59 pm

ridepate wrote:
smith700 wrote:
3206 miles......still on stock set! thatsright ownedsm There is no movement AT ALL in any of them. drive

I'll bring a jack to Windrock.................. Smiles

Yeah I got to see this. Smith, your wheels are going to fall off your buggy....... beat

_________________
I Just Want To Go Fast

14 RZR XP 900 4
2012 Teryx 4
11 RZR XP 900 sold
08 RZR S 820 sold
08 Rhino 700EFI sold
2013 Teryx 4 LE sold

Lucky Rabbit Foot Key Chain Club
Red Rhino keychain club

SouthernSxSRider Member # 1
Back to top Go down
Sponsored content




PostSubject: Re: Rhino Wheel Bearings

Back to top Go down

Rhino Wheel Bearings
Back to top
Page 2 of 3Go to page : Previous  1, 2, 3  Next
 Similar topics
-
» Rhino wheel bearings
» Rhino Wheel Bearings
» ranger wheel bearings
» 2007 Rhino 660 FS
» Changing wheel bearings

Permissions in this forum:You cannot reply to topics in this forum
SouthernSxSRiders :: The Machines :: Yamaha-
Jump to:
